A Hands-On Guide with Java 8, AWS SAM and AWS SDK v2

A Hands-On Guide with Java 8, AWS SAM and AWS SDK v2
1. Prerequisites:
2. Step-by-Step Hero’s Journey:

Tired of data silos? Imagine your DynamoDB tables seamlessly syncing across accounts, unlocking powerful use cases like disaster recovery, global deployments, and real-time analytics. Stop dreaming, start building!

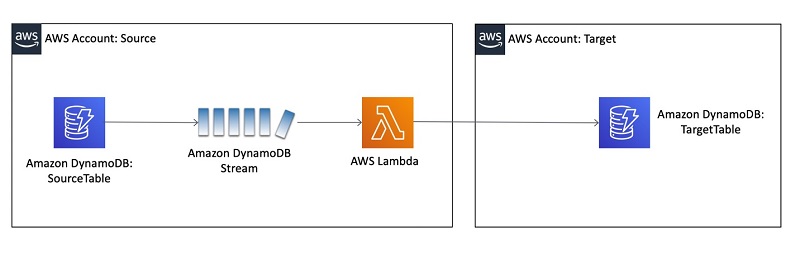

Reference from Original Architecture posted on Jan/2021 in AWS Blogpost:
https://aws.amazon.com/blogs/database/cross-account-replication-with-amazon-dynamodb/

This guide dives deep into creating a cross-account replication system using the powerful combo of AWS SAM v2 and Java 8. Buckle up, developers, and get ready to revolutionize your data management!

Prerequisites:

IntelliJ IDEA: Your trusted coding companion.
Docker Desktop: Let’s get containerized!
AWS SAM CLI: Manage your serverless apps like a pro.
AWS Account & DynamoDB Table (Source): Your data kingdom with Keys Id(Number) and UpdatedDate(String).
AWS Member Account & DynamoDB Table (Target): The new home for your replicated data with Keys Id(Number) and UpdatedDate(String). (https://docs.aws.amazon.com/organizations/latest/userguide/orgs_manage_accounts_create.html)

Step-by-Step Hero’s Journey:

Tools Time:

Install Docker Desktop and keep it running in the background

Install AWS Toolkit for IntelliJ IDEA: refer https://aws.amazon.com/blogs/developer/aws-toolkit-for-intellij-now-generally-available/

Clone the project repo from https://github.com/pbkn/DDB-CAR

IAM Magic:

In your Source Account, create the IAM role and trust policy below.
Keep note of the Role ARN:
Source IAM Role: Policies
– AWSLambdaBasicExecutionRole
– AWSLambdaDynamoDBExecutionRole
– DDB-CAR-TrustPolicy (Code below)

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "sts:GetSessionToken",
                "sts:DecodeAuthorizationMessage",
                "sts:GetAccessKeyInfo",
                "sts:GetCallerIdentity",
                "sts:GetServiceBearerToken"
            ],
            "Resource": "*"
        },
        {
            "Sid": "VisualEditor1",
            "Effect": "Allow",
            "Action": "sts:*",
            "Resource": "arn:aws:iam::{Target-Account-Number}:role/DDB-CAR-Role"
        }
    ]
}

Source IAM Role: Trust Policy

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::{Target-Account-Number}:root",
                "Service": "lambda.amazonaws.com"
            },
            "Action": "sts:AssumeRole",
            "Condition": {}
        }
    ]
}

In your Target Account, create the IAM role and trust policy below. Keep note of the Role ARN: Target IAM Role: Policies
– DDB-CAR-Policy

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "dynamodb:BatchGetItem",
                "dynamodb:BatchWriteItem",
                "dynamodb:PutItem",
                "dynamodb:DescribeTable",
                "dynamodb:DeleteItem",
                "dynamodb:GetItem",
                "dynamodb:Scan",
                "dynamodb:Query",
                "dynamodb:UpdateItem"
            ],
            "Resource": "arn:aws:dynamodb:ap-south-1:{Target-Account-Number}:table/Target-DDB"
        },
        {
            "Sid": "VisualEditor1",
            "Effect": "Allow",
            "Action": "dynamodb:ListTables",
            "Resource": "*"
        }
    ]
}

Target IAM Role: Trust Policy

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": [
                    "arn:aws:iam::{Source-Account-Number}:root",
                    "arn:aws:iam::{Source-Account-Number}:role/DDB-CAR-Source-Role"
                ]
            },
            "Action": "sts:AssumeRole",
            "Condition": {}
        }
    ]
}

Stream On:

In your Source Account, enable Streams in your DynamoDB table and keep note of the Stream ARN.

Template Talk:

In your project, go to the template.yaml file and update the <Role> and <Stream> values with the ARNs you noted in the above steps:

SDK Spotlight:

Observe the power of AWS SDK v2 and DynamoDB enhanced client in POM.xml

 <properties>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <aws.sdk.version>2.24.0</aws.sdk.version>
 </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>software.amazon.awssdk</groupId>
                <artifactId>bom</artifactId>
                <version>${aws.sdk.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

<dependencies>
        <dependency>
            <groupId>software.amazon.awssdk</groupId>
            <artifactId>dynamodb</artifactId>
        </dependency>
        <dependency>
            <groupId>software.amazon.awssdk</groupId>
            <artifactId>dynamodb-enhanced</artifactId>
        </dependency>
        <dependency>
            <groupId>software.amazon.awssdk</groupId>
            <artifactId>sts</artifactId>
            <version>2.24.0</version>
        </dependency>
</dependencies>

Data Schema:

Understand DynamoDbBean, DynamoDbPartitionKey, and DynamoDbSortKey in TargetDDBSchema.java

@Data
@NoArgsConstructor
@AllArgsConstructor
@Builder
@DynamoDbBean
public class TargetDDBSchema {

    private Long id;
    private String updatedDate;
    private String message;
    private Boolean checkedItem;

    @DynamoDbPartitionKey
    @DynamoDbAttribute("Id")
    public Long getId() {
        return id;
    }

    @DynamoDbSortKey
    @DynamoDbAttribute("UpdatedDate")
    public String getUpdatedDate() {
        return updatedDate;
    }

    @DynamoDbAttribute("Message")
    public String getMessage() {
        return message;
    }

    @DynamoDbAttribute("CheckedItem")
    public Boolean getCheckedItem() {
        return checkedItem;
    }
}

Target & Conquer:

Modify the <TARGET_STS_ROLE_ARN> and <TARGET_DDB_TABLE> values accordingly in Constants.java

    public static final String TARGET_DDB_TABLE = "Target-DDB";

    public static final String TARGET_STS_ROLE_ARN = "arn:aws:iam::381492012287:role/DDB-CAR-Role";

Code Craft:

Observe how DynamoDbEnhancedClient, STSClient, and TargetDDBSchema are handled and coded in App.java:

    @Override
    public String handleRequest(final DynamodbEvent input, final Context context) {
        try {
            List<DynamodbEvent.DynamodbStreamRecord> records = input.getRecords();

            for (Record record : records) {
                logger.info("Received record with eventId: {}", record.getEventID());

                if (Objects.nonNull(record.getDynamodb().getKeys()) && Objects.nonNull(record.getDynamodb().getNewImage())) {
                    logger.info("Received record with keys: {}", record.getDynamodb().getKeys());
                    logger.info("Received record with newImage: {}", record.getDynamodb().getNewImage());
                    logger.info("Received record with eventName: {}", record.getEventName());
                    logger.info("Received record with sizeBytes: {}", record.getDynamodb().getSizeBytes());

                    try (StsClient stsClient = StsClient.builder().region(Region.AP_SOUTH_1).build()) {

                        AwsSessionCredentials sessionCredentials = getAwsSessionCredentials(stsClient);

                        DynamoDbClient dynamoDbClient = DynamoDbClient.builder().region(Region.AP_SOUTH_1).credentialsProvider(AwsCredentialsProviderChain.builder().credentialsProviders(StaticCredentialsProvider.create(sessionCredentials)).build()).build();
                        DynamoDbEnhancedClient dynamoDbEnhancedClient = DynamoDbEnhancedClient.builder().dynamoDbClient(dynamoDbClient).build();
                        DynamoDbTable<TargetDDBSchema> targetDDBTable = dynamoDbEnhancedClient.table(Constants.TARGET_DDB_TABLE, TableSchema.fromClass(TargetDDBSchema.class));
                        TargetDDBSchema targetDDBSchema = getTargetDDBSchema(record);
                        if (Constants.DDB_EVENT_REMOVE.equals(record.getEventName())) {
                            targetDDBTable.deleteItem(targetDDBTable.keyFrom(targetDDBSchema));
                        } else {
                            targetDDBTable.putItem(targetDDBSchema);
                        }
                        logger.info("{} item in table {} with Id: {} successfully", record.getEventName(), Constants.TARGET_DDB_TABLE, record.getDynamodb().getNewImage().get("Id").getN());
                    }


                }
            }
            return Constants.SUCCESS;
        } catch (StsException e) {
            logger.error("Error occurred while assuming role: {}", e.getMessage());
            return Constants.FAILURE;
        } catch (Exception e) {
            logger.error("Error occurred while processing event: {}", e.getMessage());
            return Constants.FAILURE;
        }
    }

    private static TargetDDBSchema getTargetDDBSchema(Record record) {
        TargetDDBSchema targetDDBSchema = new TargetDDBSchema();
        if (Objects.nonNull(record.getDynamodb().getNewImage().get("Id")))
            targetDDBSchema.setId(Long.valueOf(record.getDynamodb().getNewImage().get("Id").getN()));
        if (Objects.nonNull(record.getDynamodb().getNewImage().get("UpdatedDate")))
            targetDDBSchema.setUpdatedDate(record.getDynamodb().getNewImage().get("UpdatedDate").getS());
        if (Objects.nonNull(record.getDynamodb().getNewImage().get("Message")))
            targetDDBSchema.setMessage(record.getDynamodb().getNewImage().get("Message").getS());
        if (Objects.nonNull(record.getDynamodb().getNewImage().get("CheckedItem")))
            targetDDBSchema.setCheckedItem(record.getDynamodb().getNewImage().get("CheckedItem").getBOOL());
        return targetDDBSchema;
    }

    private static AwsSessionCredentials getAwsSessionCredentials(StsClient stsClient) {
        AssumeRoleRequest roleRequest = AssumeRoleRequest.builder().roleArn(Constants.TARGET_STS_ROLE_ARN).roleSessionName(Constants.TARGET_STS_SESSION_NAME).durationSeconds(Constants.STS_TTL_SECONDS).externalId(Constants.STS_EXTERNAL_ID).build();

        AssumeRoleResponse roleResponse = stsClient.assumeRole(roleRequest);
        Credentials tempCreds = roleResponse.credentials();
        AwsSessionCredentials sessionCredentials = AwsSessionCredentials.create(tempCreds.accessKeyId(), tempCreds.secretAccessKey(), tempCreds.sessionToken());

        // Display the time when the temp creds expire.
        Instant exTime = tempCreds.expiration();
        String tokenInfo = tempCreds.sessionToken();
        logger.info("The STS token {}  expires on {}", tokenInfo, exTime);
        logger.info("Assumed role successfully");
        return sessionCredentials;
    }

Test Your Might:

Explore the test folder to understand JSON-to-DynamoDB event conversion and unit tests:

    @Test
    public void sanityCheck() {
        try (InputStream testStream = this.getClass().getResourceAsStream("/test-stream-all-fields.json")) {
            String testJson = IoUtils.toUtf8String(Objects.requireNonNull(testStream));
            ObjectMapper mapper = new ObjectMapper();
            DynamodbEvent dynamodbEvent = mapper.readValue(testJson, DynamodbEvent.class);
            //Will actually insert data into DynamoDB after STS is cofigured properly
            /*App app = new App();
            Assert.assertEquals(Constants.SUCCESS, app.handleRequest(dynamodbEvent, getTestContext()));*/
            Assert.assertNotNull(dynamodbEvent);
        } catch (IOException e) {
            logger.error(e.getMessage(), e);
        }
    }

Build & Deploy:

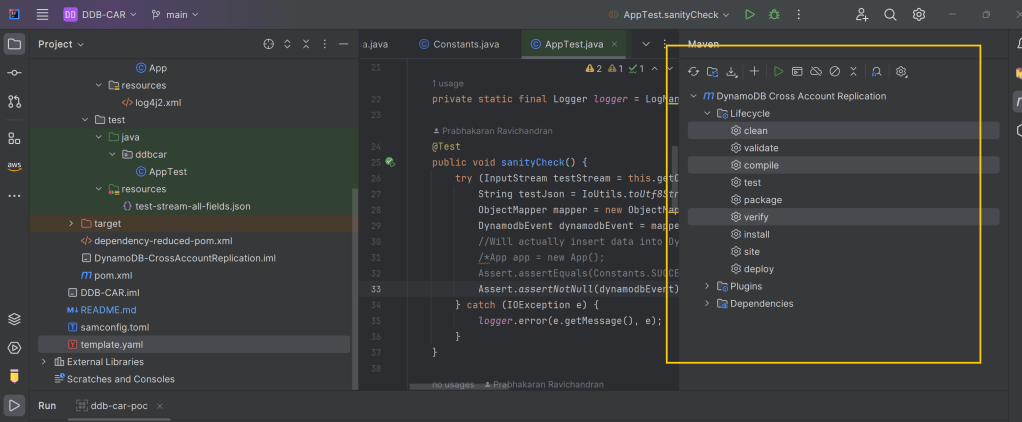

Run the command mvn clean compile verify using the Intellij Maven plugin:

SAMtastic Deployment:

Right-click on template.yaml and choose Sync Serverless Application (formerly Deploy)
Input the Stack name and S3 bucket name in the pop-up window

Data Flow:

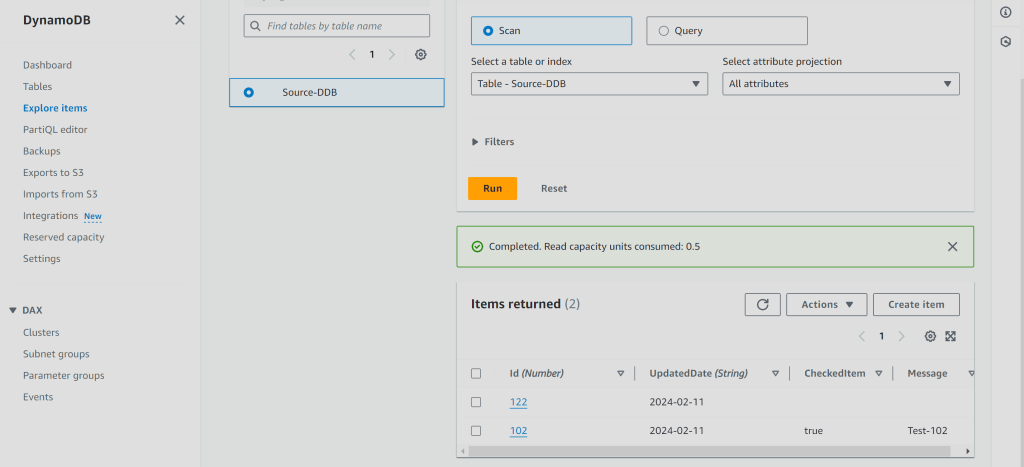

Go to your Source Account DynamoDB Table and insert some data.

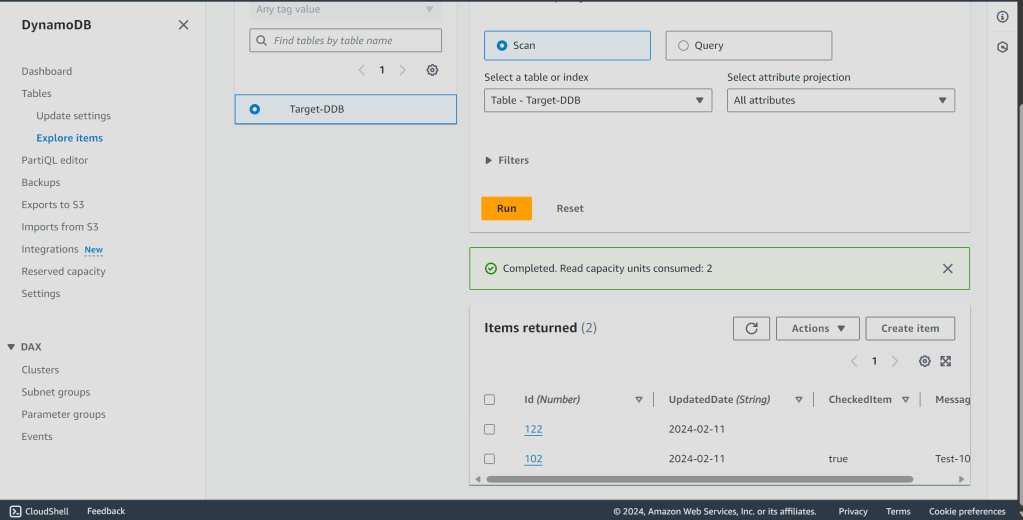

Go to your Target Account DynamoDB Table and observe the replicated data!

The Secret Sauce:

Trust & Permissions: This setup hinges on carefully configuring trust policies and IAM roles across accounts. That’s why they’re configured separately to avoid mistakes.

Remember, with great power comes great responsibility: Don’t forget to clean up your resources (stack, log-group, alarms, and S3 bucket) to avoid unnecessary costs.

Now go forth and replicate! Share your experiences and conquer the data silo monster with your newfound superpowers.
